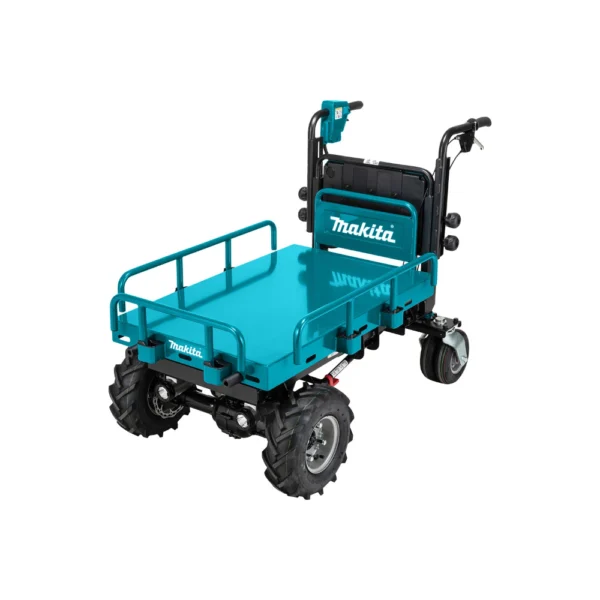

Makita – DCU601Z – 18Vx2 LXT Electric Lift with Frame
The Makita DCU601Z is an 18Vx2 (36V) LXT Brushless Electric Lift designed for efficient material handling. It features a 965 x 645mm flat bed with retractable guards and offers an electric lift capacity of up to 1,020mm for loads up to 300kg. With a maximum travel distance of 7.2km using four 6.0Ah batteries and variable speed control up to 5.0km/h, including a reverse function, it is suitable for various terrains with a climbing ability of up to 12° incline.
Key Features
- 965 x 645mm flat bed with retractable guards
- Electric lift capacity up to 1,020mm for loads up to 300kg
- Variable speed control up to 5.0km/h with reverse function
- Maximum climbing ability of 12° incline
- Travels up to 7.2km on a full charge with four 6.0Ah batteries
Optional Accessories
- 330mm Black Front Tyre (1911K4-7)
- 330mm Grey Front Tyre (1911K5-5)
- 210mm Grey Rear Tyre (1911K6-3)
Specifications
| Continuous Run Time | 100 minutes (with 4 x BL1860B batteries) |
| Maximum Load Capacity | Flat Ground: 300kg Incline: 180kg |
| Maximum Speed | High: 5.0km/h Medium: 3.5km/h Low: 1.5km/h Reverse: 1.0km/h |
| Maximum Incline | 12° |
| Maximum Travel Distance | 7.2km |
| Overall Length | 1,400mm |
| Overall Dimensions | 1,400 x 730 x 820mm |
| Net Weight (Skin) | 145kg |
| Maximum Power Output | 1,250W |
| Voltage | 18Vx2 (36V) |
| LXT Battery Compatibility | 3Ah, 4Ah, 5Ah, 6Ah |
